| 15ft. Raised Roof Specification Sheet | ||
| Overall Parameters | ||
| Type | Raised Roof Caravan | |
| External Dimensions（Length*Width*Height） | 5250*2320*3010 | (actual sample car as reference) |
| Body Dimensions (Length*Width*Height) | 4600*2140*2340 | |
| Color Scheme | Black+Silver Dual-Color | |
| Exterior Sheet | Aluminum Composite Panel+Aluminum Embossed Panel | |
| Sticker | Full-Car Engraved Sticker | |
| Undercarriage Structure | Q345GB Chassis Main Beam 50*150*4+Independent Towing Frame Welded Integration | |
| Single-Axle Independent Suspension | ||
| 2*(20*106*270*7.5, Red) Helical Spring | ||
| 4*(80mm, Green) Shock Absorber Pillow | ||
| 4*(30-500) Red Damping | ||
| 4*265*75*R16 M/T Tires | ||
| Brakes | 12-inch Electric Brake+Hand Brake | |
| Gross Weight | 2260KG | Designed Gross Weight |
| Interior Configuration | ||
| Refrigerator | Dometic 65L | |
| Air Conditioner | Truma | |
| Cooking Equipment | Dometic | |
| Entertainment System | Radio | 2 External Speakers, 2 Internal Speakers. |
| 22-inch TV | ||
| Interior Lights | Indoor Ceiling Light, Reading Light | |
| Step LED Ambient Light | ||
| Bathroom Structure | Independent Aluminum Frame Bathroom | |
| Glass Steel White Sink | ||
| Silver Faucet | ||
| Exhaust Fan | ||
| Thetford Back-Flush Plastic Toilet | ||
| Water Heater/Gas System | Truma AquaGo Gas/Electric Dual-Use Water Heater | |
| Fire Extinguisher | 2 Liters | |
| External Configuration | ||
| Towing Guide Wheel | Double Guide Wheel, Single Guide Wheel Optional. | |
| Gas Cylinder Size | 2*4.5KG | |
| Bumper | Spray-Painted Red Gloss | |
| Body Support Legs | 4*Adjustable Body Support Legs | |

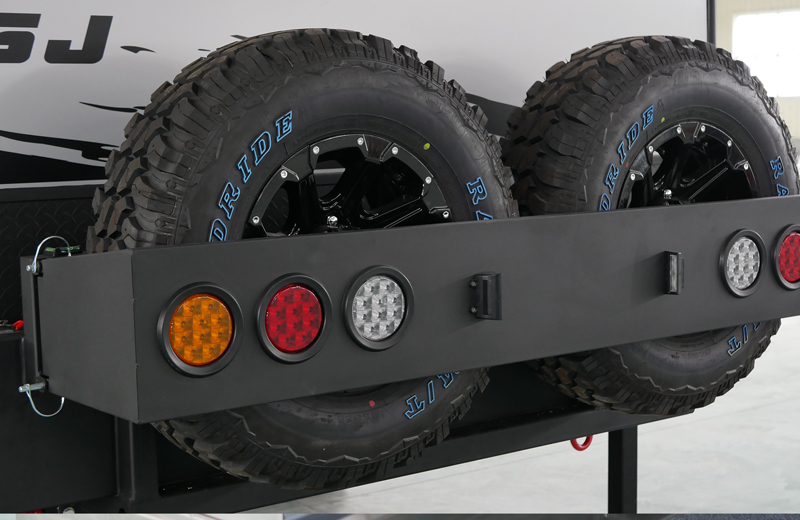

| Spare Tire Rack | 2 Spare Tires on the Rear Side | |
| Bar Counter | Folding bar counter with storage space | |
| Upper door | 1* 1750*630 screened door and vent, open towards the rear of the car | |
| Step manual | electric, flashlight optional | |
| Shower Outdoor | cold/hot shower | |
| Awning | Black manual awning 4.3M | |

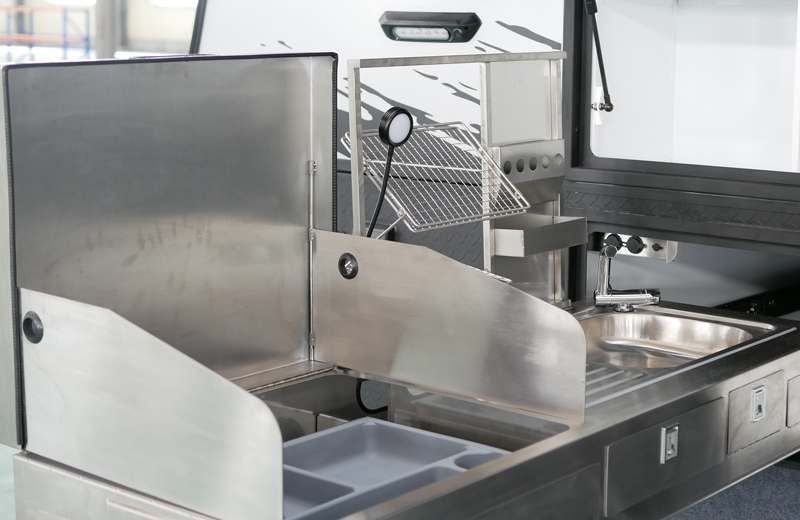

| Kitchen | horizontal pull-out all stainless steel cooktop | |
| Outdoor | lighting left/right | |
| Dome lights | (with "ADR" logo) *6 (orange) on left/right wall, 2 (red) on rear wall, 2 (white) on front face | |
| Tail lights | (with "ADR" logo) 2 (orange) on outside, 2 (white) on inside, 2 (red) in the middle | |
| Number plate light | 1 pair | |
| Seven-pin | plug 7-pin flat | |
| Brake insurance | Electronic brake insurance switch | |
| Power system | ||
| Power supply system | 12V+240V power supply system | |
| Battery | 300A lithium iron phosphate battery | |
| Inverter | 12VDC/240VAC 3KW Marelon inverter charger | |
| Solar panel | 3*200W monocrystalline photovoltaic hard panel | |
| Water system | ||
| water tank | 2*120L plastic fresh water tank | |
| 1*80 plastic gray water tank | ||
| cover Aluminum | diamond plate in original color | |
| Gravity water inlet | Gravity water inlet | |
|
Water system accessories |
JohnGuest、Truma and domestic parts | |
| Water pump | Seaflo | |
